Showing all 3 results
-

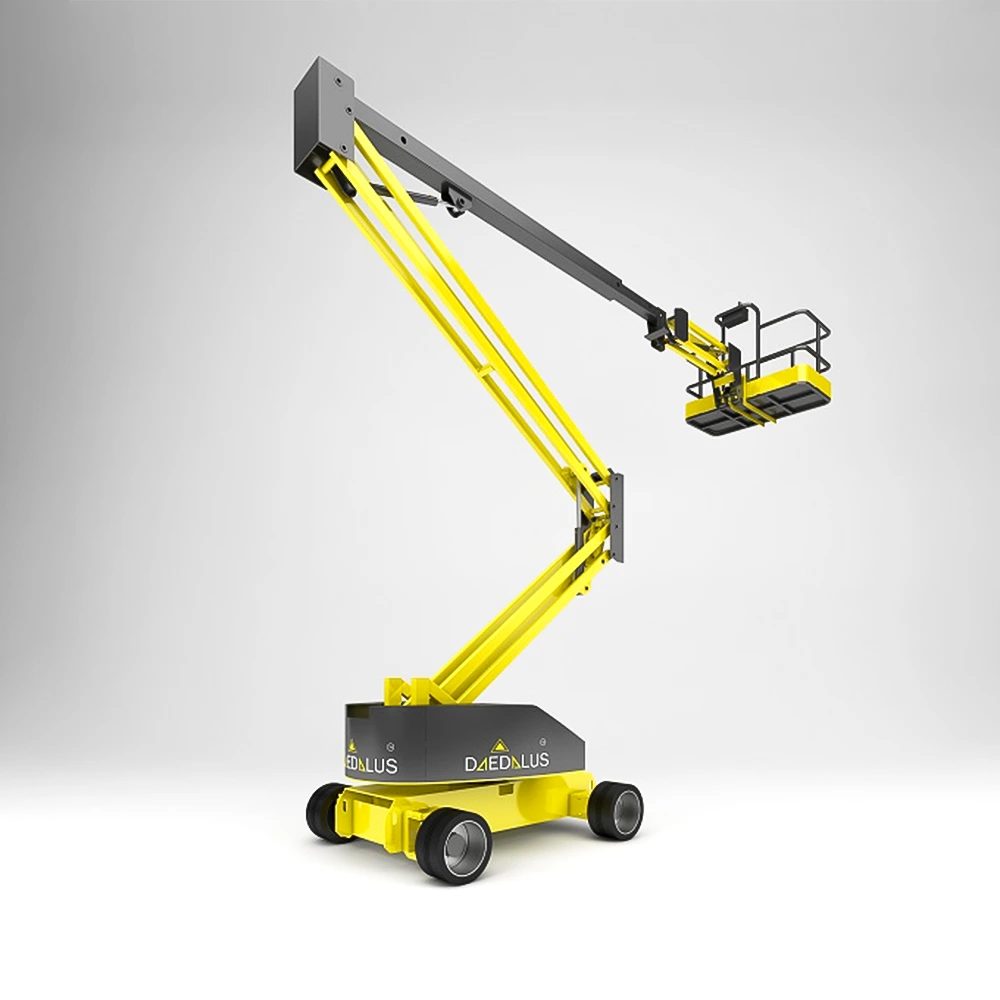

Articulated Boom LiftArticulated Boom Lift DBA-20/10
These Articulating Boom Lift provides the ability to lift-up with good horizontal as well as vertical reach. Its compact nature makes it a primary choice to be used around tricky architecture. There is no such obstacle you can’t handle with our DBA – 20/10.
Model Measurements DBA- 20 / 10
Max Working Height 65 ft
Maximum Platform Height 59 ft
Maximum Horizontal Outreach** 30 ft
Platform Length 2.9 ft
Platform Width 7.5 ft
Guardrail Height 3.6 ft
Height 8.5 ft
Vehicle Dimensions h-8.5 ft, l- 28 ft , w- 8.2 ft
Wheelbase 8.2 ft
Ground Clearence 0.7 ft(0 reviews) -

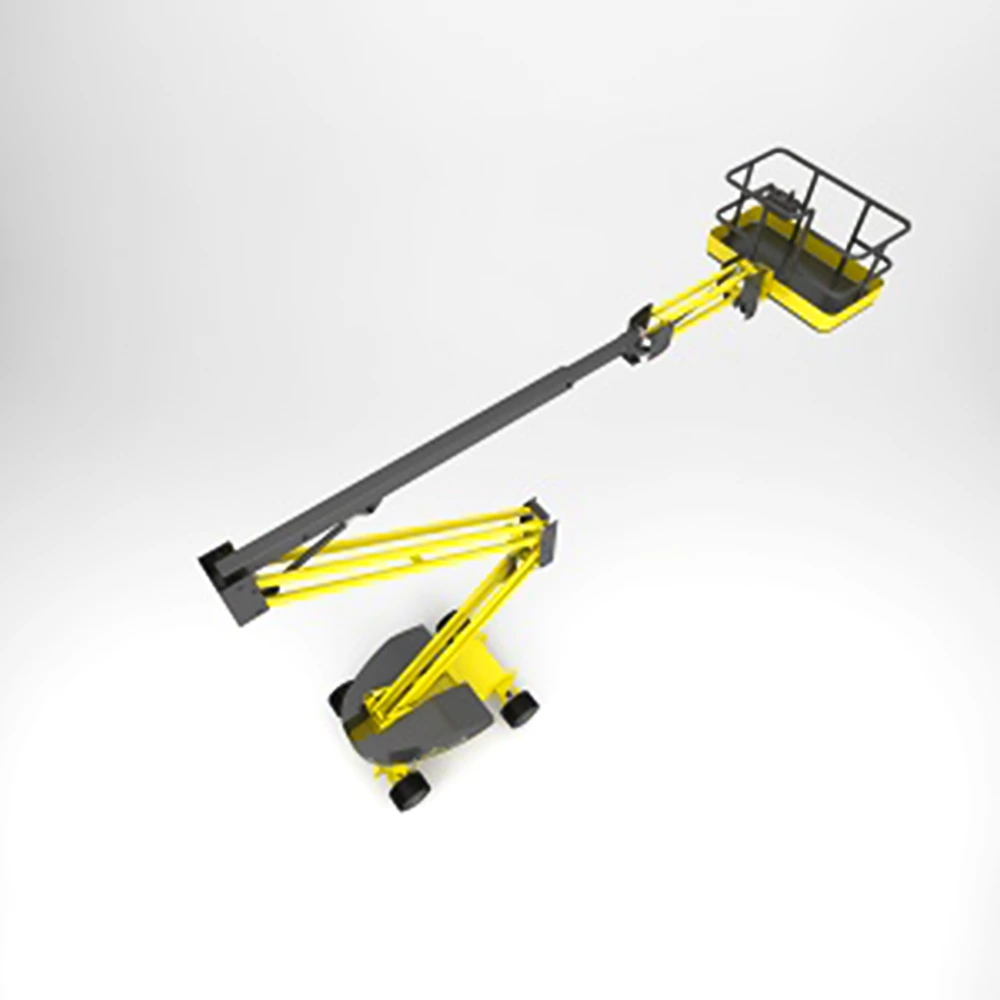

Articulated Boom LiftArticulated Boom Lift DBA-16/7
These Articulating Boom Lift provides the ability to lift-up with good horizontal as well as vertical reach. Its compact nature makes it a primary choice to be used around tricky architecture. There is no such obstacle you can’t handle with our DBA – 12/6.
Model Measurements DBA-16 / 7
Max Working Height 52 ft
Maximum Platform Height 45 ft
Maximum Horizontal Outreach** 26 ft
Platform Length 2.9 ft
Platform Width 6.5 ft
Guardrail Height 3.6 ft
Height 7.5 ft
Vehicle Dimensions h-7.5 ft , l- 24 ft , w- 7.2 ft
Wheelbase 7.2 ft
Ground Clearance 0.7 ft(0 reviews) -

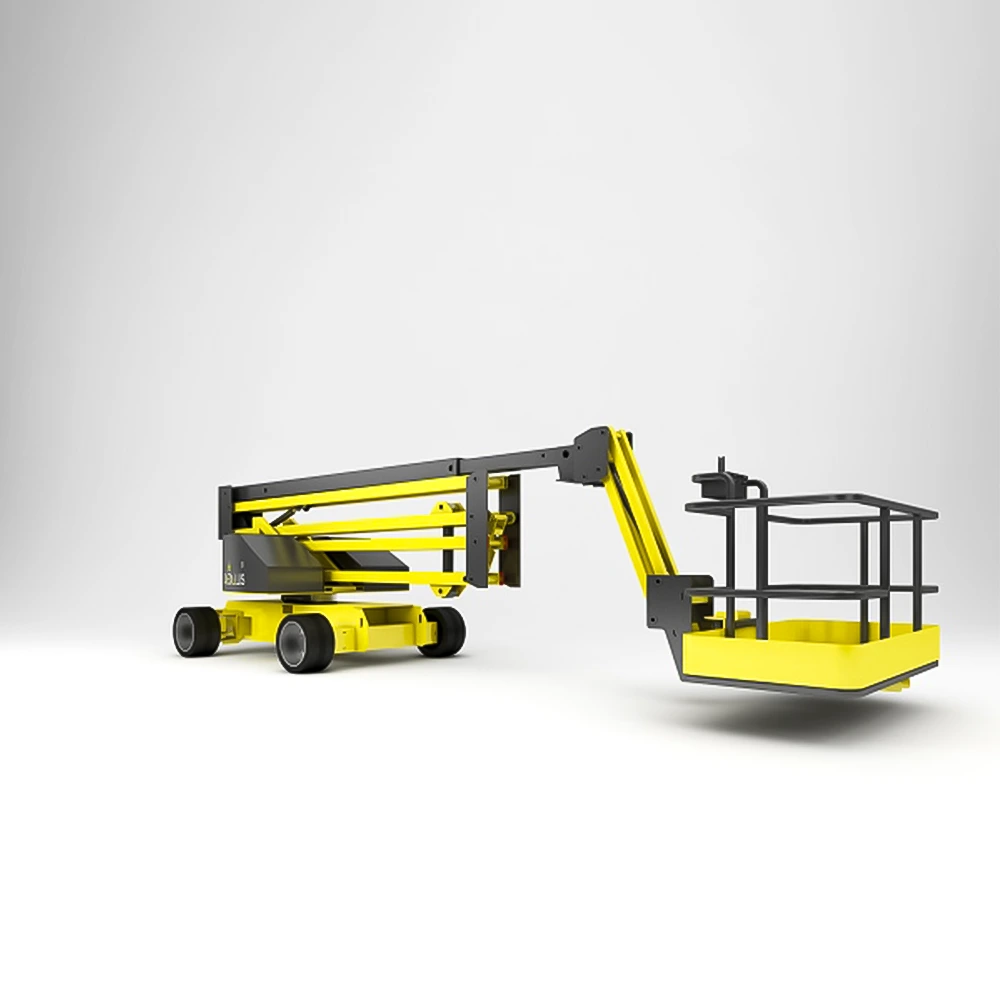

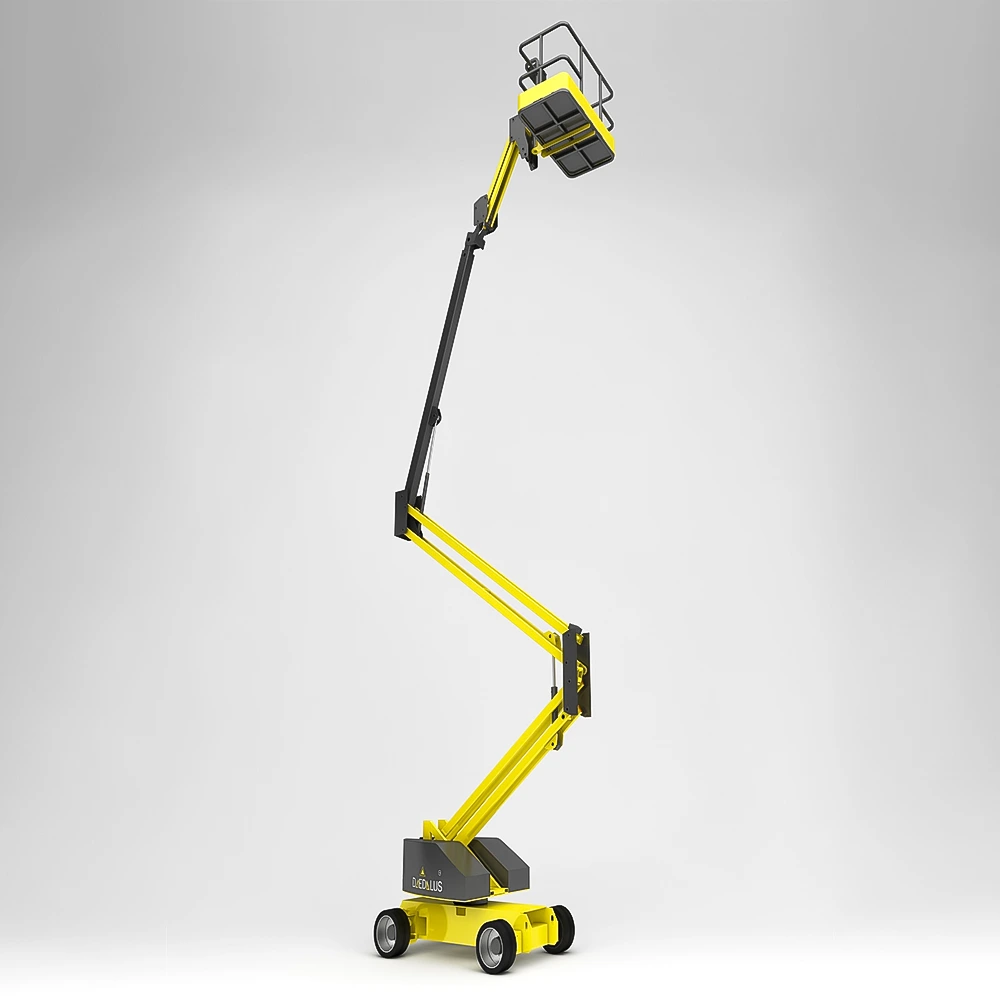

Articulated Boom LiftArticulated Boom Lift DBA-12/6
These Articulating Boom Lift provides the ability to lift-up with good horizontal as well as vertical reach. Its compact nature makes it a primary choice to be used around tricky architecture. There is no such obstacle you can’t handle with our DBA – 12/6.
Model Measurements DBA-12 / 6
Max Working Height 39 ft
Maximum Platform Height 32 ft
Lowered Platform Height 5.9 ft
Platform Length 10.1 ft/13.4 ft
Extension Deck 2.9 ft
Platform Width 7.2 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-9.2 ft , l- 10.1 ft , w- 7.3 ft
Ground Clearance 0.65 ft(0 reviews) -

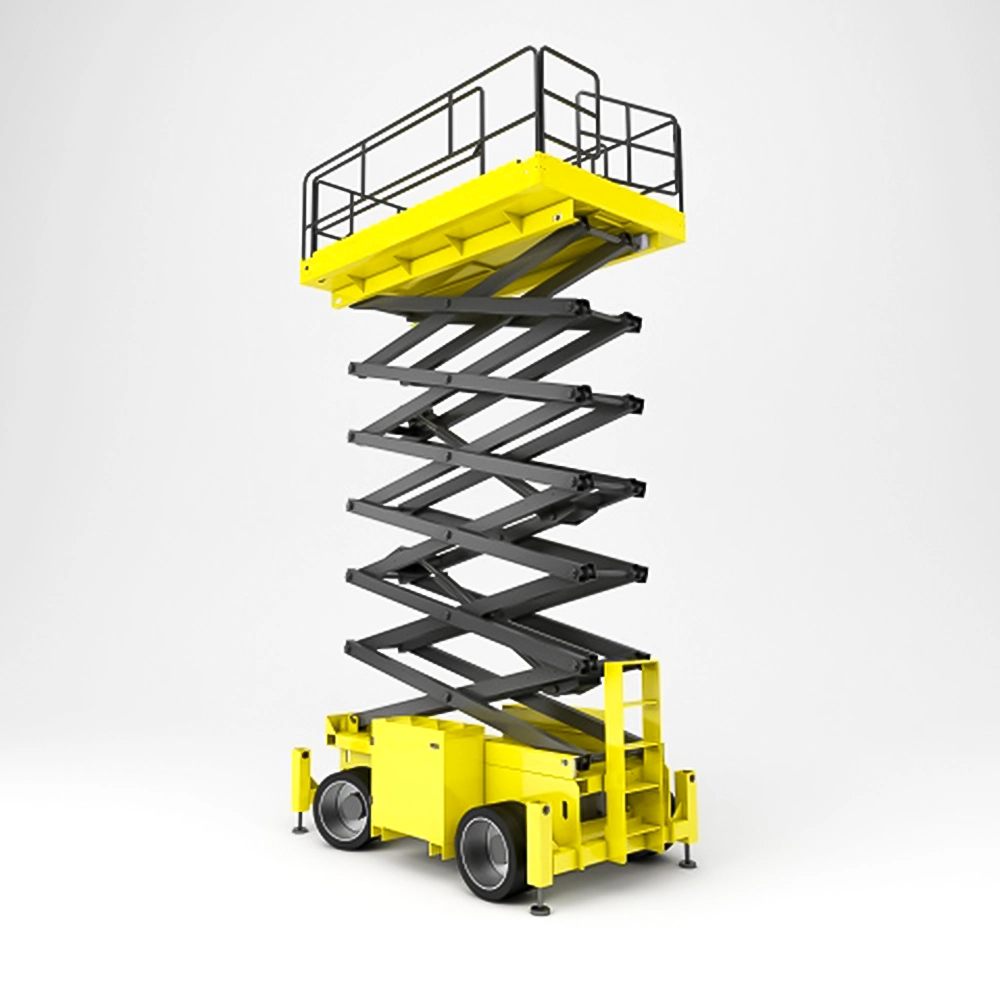

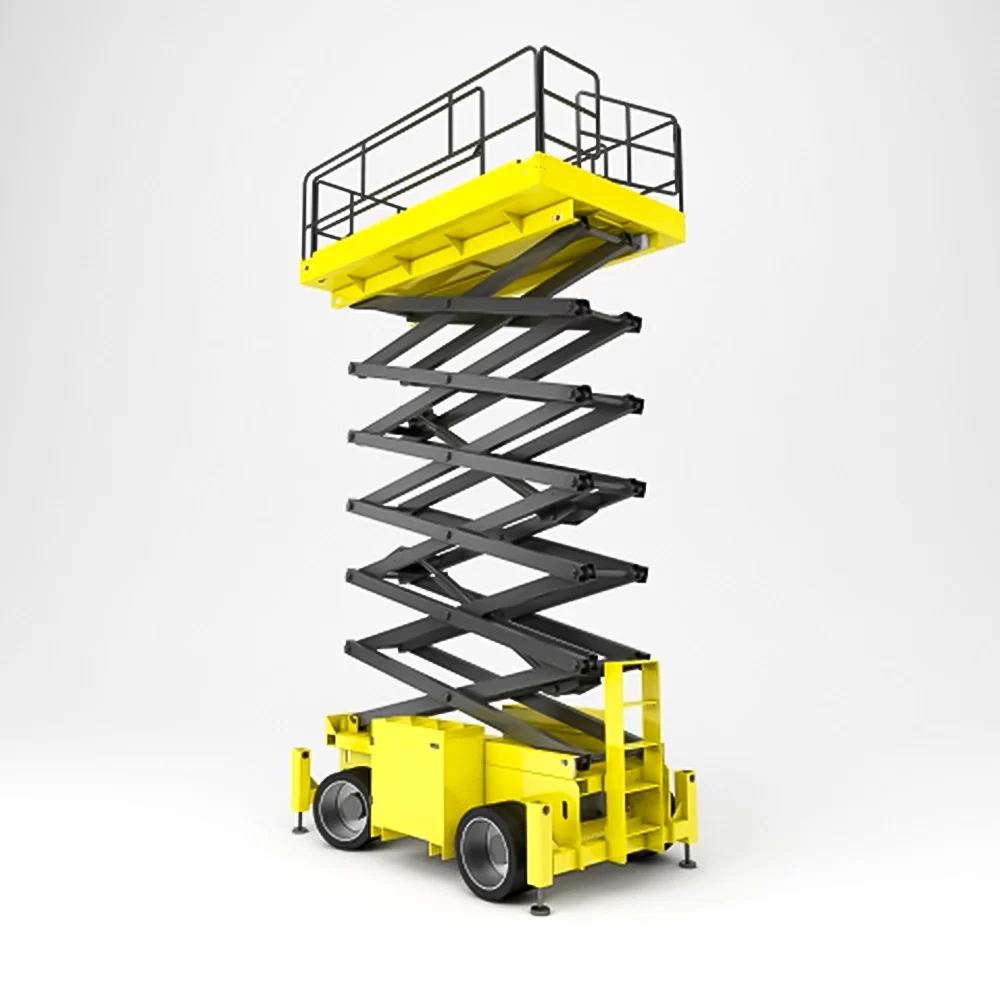

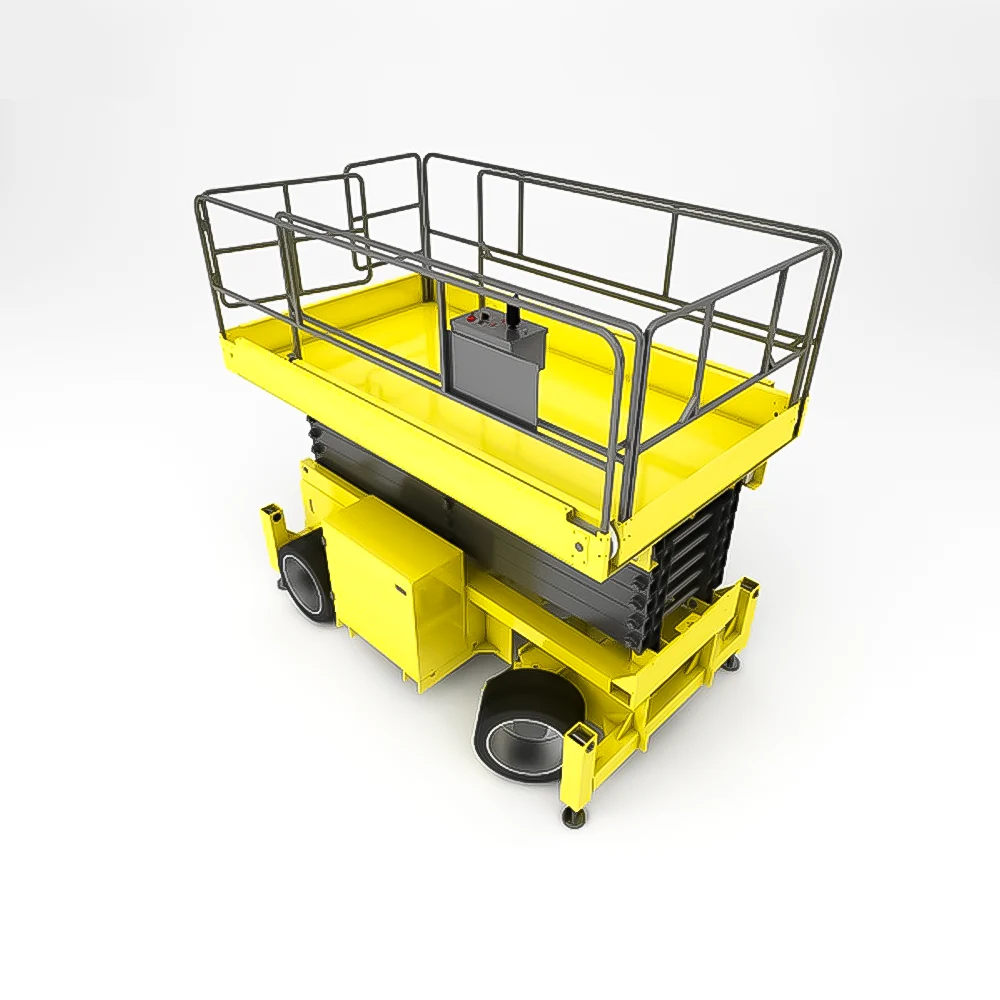

Rough Terrain Scissor LiftRough Terrain Scissor Lift DS-1618 RT
This rough terrain Scissor lift provides a 16m vertical reach at any environment. It is equipped with robust spring applied hydraulic release brakes along with an inbuilt smart battery charger; making it an ideal choice for all outdoor rough terrain applications.
Model Measurements DS- 1218 RT
Max Working Height 52 ft
Maximum Platform Height 45 ft
Lowered Platform Height 6.5 ft
Platform Length 10.4 ft /10.1 ft
Extension Deck 2.9 ft
Platform Width 7.2 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-9.8 ft, l-10.1 ft , w-7.3 ft
Ground Clearance 0.65 ft(0 reviews) -
Rough Terrain Scissor LiftRough Terrain Scissor Lift DS-1418 RT
Provided with large anti-skid platform surface, it increases productivity and efficiency at your jobsites making DS-1418 RT a true start to finish machine for any application. Its tight turning radius allows the operator to maneuver it with ease.
Model Measurements DS- 1218 RT
Max Working Height 45 ft
Maximum Platform Height 39 ft
Lowered Platform Height 6.2 ft
Platform Length 10.1 ft /13.4 ft
Extension Deck 2.9 ft
Platform Width 7.2 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-9.5 ft, l- 10.1 ft , w- 7.3 ft
Ground Clearence 0.65 ft(0 reviews) -

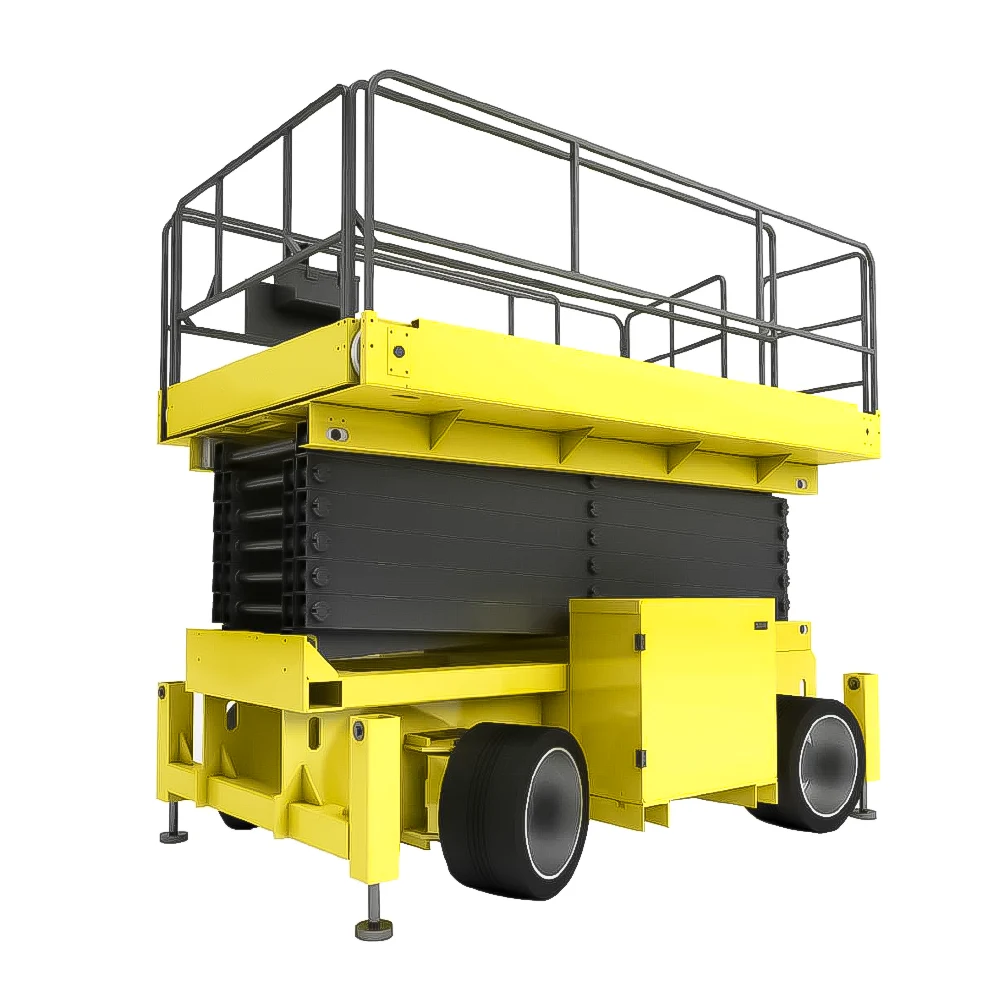

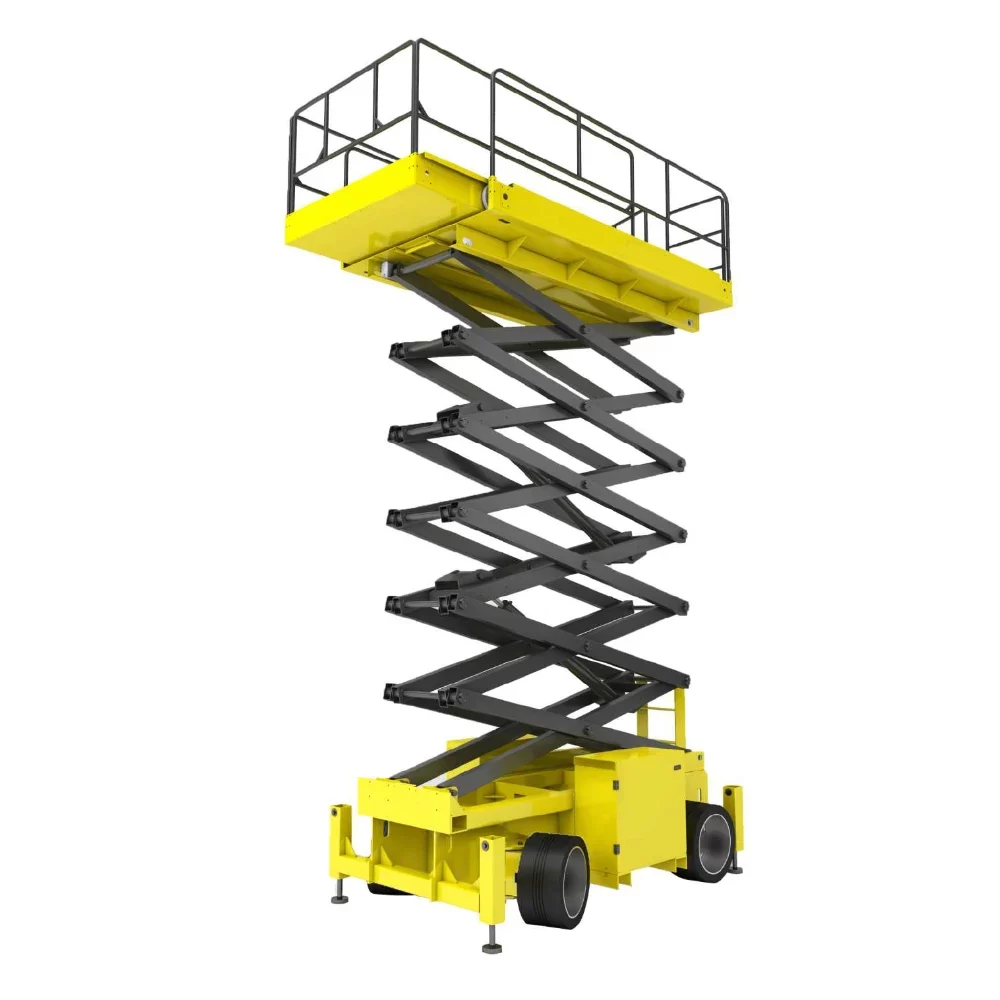

Rough Terrain Scissor LiftRough Terrain Scissor Lift DS-1218 RT
Our Rough Terrain Models of self-propelled scissor lifts are suitable for all terrains applications and allows the operator to work without noise. With high ground clearance and 4WD power, they can climb slopes up to 35% gradeability with ease.
Model Measurements DS- 1218 RT
Max Working Height 39 ft
Maximum Platform Height 32 ft
Lowered Platform Height 5.9 ft
Platform Length 10.1 ft/13.4 ft
Extension Deck 2.9 ft
Platform Width 7.2 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-9.2 ft , l- 10.1 ft , w- 7.3 ft
Ground Clearance 0.65 ft(0 reviews) -
Self-Propelled Scissor LiftSelf-Propelled Scissor Lift DS-1412
These scissor lifts are outstanding in performance and are used in indoor as well as outdoor applications on firm, leveled surfaces. It provides optimized low total cost of ownership with vertical reach of 14m.
Model Measurements DS-1412
Max Working Height 45 ft
Maximum Platform Height 39 ft
Lowered Platform Height 5.6 ft
Platform Length 7.9 ft / 10.8 ft
Extension Deck 2.9 ft
Platform Width 3.9 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-8.9 ft , l- 8.2 ft , w- 4.1 ft
Ground Clearance 0.3 ft(0 reviews) -
Self-Propelled Scissor Lift
Self-Propelled Scissor Lift DS-1212
Our DS-1212 scissor lift is very quiet, making it an ideal choice for all sound sensitive areas. Ease in operation with proportional joystick controls and quick movements, it is equipped with angle sensors for optimum safety. Its 900 mm extension deck, allows you to work on areas that are difficult to reach.
Model Measurements DS-1212
Max Working Height 39 ft
Maximum Platform Height 32 ft
Lowered Platform Height 5.0 ft
Platform Length 7.9 ft/ 10.8 ft
Extension Deck 2.9 ft
Platform Width 3.9 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-8.5 ft, l- 8.2 ft , w- 4.1 ft
Ground Clearance 0.3 ft(0 reviews) -

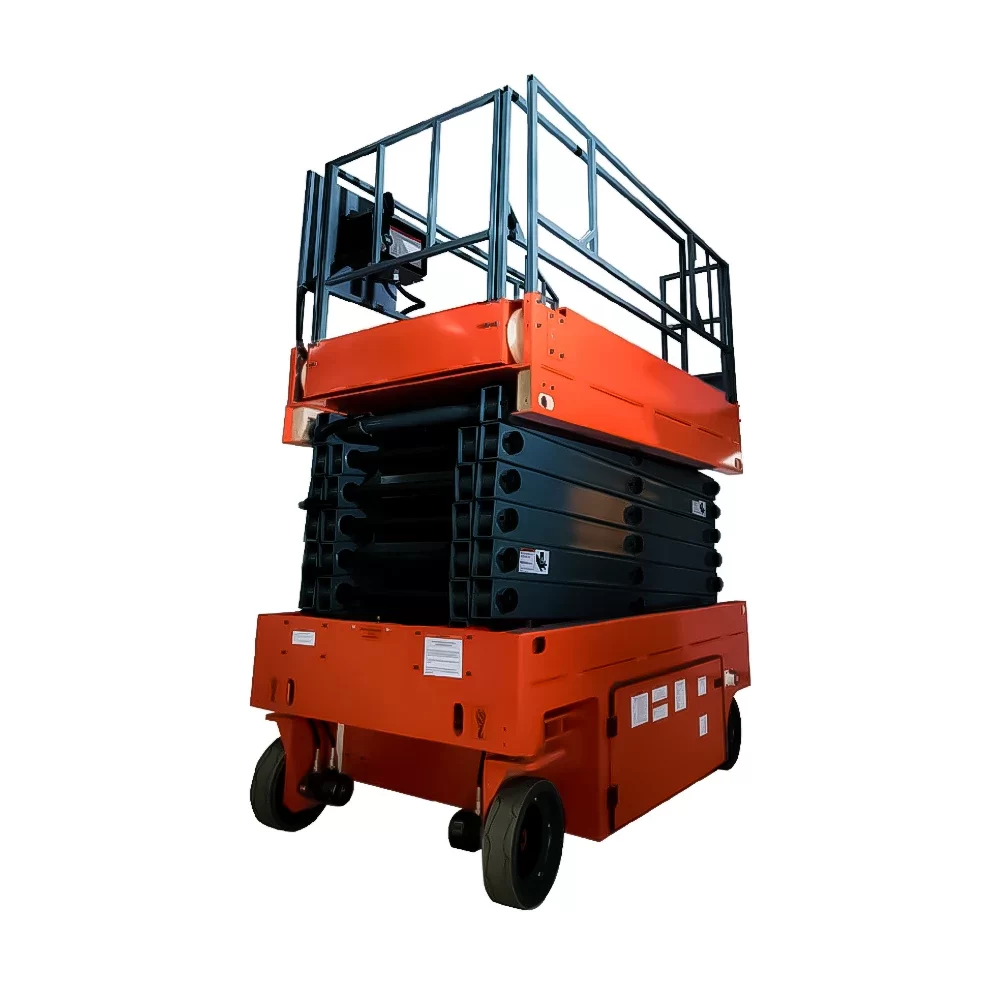

Self-Propelled Scissor LiftSelf-Propelled Scissor Lift DS-1212 1.9V
DS 1212 1.9V is the most compact scissor in the 12m range, making it an ideal choice for all your needs. The easily accessible battery tray is designed to reduce service schedules and provide access to all the components.
Model Measurements DS-1010
Max Working Height 39 ft
Maximum Platform Height 32 ft
Lowered Platform Height 5.2 ft
Platform Length 6.4 ft / 8.9 ft
Extension Deck 2.6 ft
Platform Width 3.9 ft
Guardrail Height 3.2 ft
Vehicle Dimensions h-8.5 ft, l- 6.6 ft , w- 4.1 ft
Ground Clearence 0.3 ft(0 reviews)
