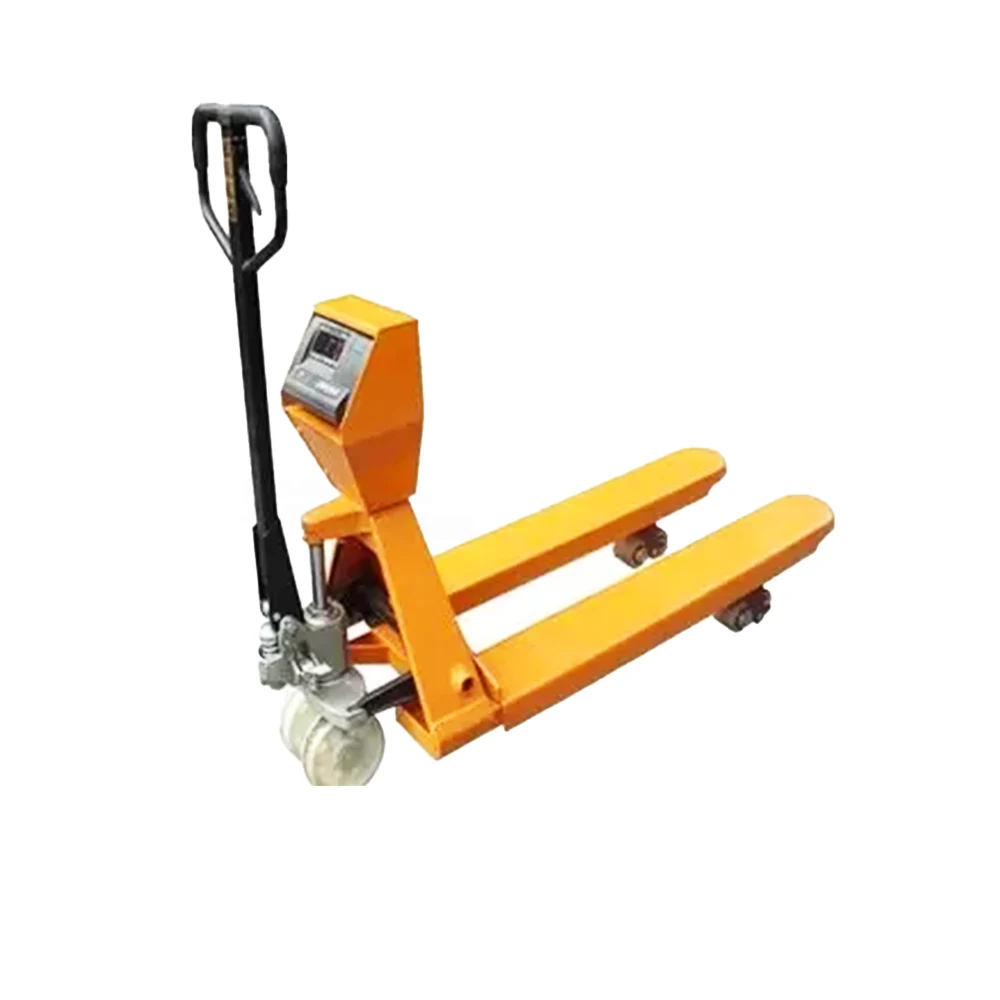

Capacity kg 3000
Min. fork height mm 85
Max. fork height mm 200
Fork outside width mm 550
Single fork size(l/e/s) mm 1100×180×50
Min. turning radius mm 1350
Weighing Accuracy % ± 0.05%
Bearing wheel size mm Φ70×70
Steering wheel size mm Φ180×68
Material of steering/bearing wheel Nylon
Battery v DC6V
Net weight 128 kg
₹65,000.00
In StockCapacity kg 3000
Min. fork height mm 85
Max. fork height mm 200
Fork outside width mm 550
Single fork size(l/e/s) mm 1100×180×50
Min. turning radius mm 1350
Weighing Accuracy % ± 0.05%
Bearing wheel size mm Φ70×70
Steering wheel size mm Φ180×68
Material of steering/bearing wheel Nylon
Battery v DC6V
Net weight 128 kg
| Weight | 128 kg |
|---|
Capacity – 2000kg (2Ton)
Front Wheel 4 roller: 80 x 72mm
Main Body steel Thickness – 4mm
High Durability Power coated
Fork Length – 1150mm
Heavy Duty Cast DF hydraulic pump with 35mm Stainless Steel Shaft. (Repairable)
Model No. DI-HPT3T
Load Capacity – 3000Kg
Width – 685mm
Fork Length – 1220mm
Max Lifting Height – 200mm
Min Lifting Height – 80mm
Steering Wheel Diameter – 180 x 50mm
Hydraulic system – DF
Wheels – Nylon
Weight – 110kg
Model No. DI-HPT5T
Load Capacity – 5000Kg
Width – 550mm
Fork Length – 1150mm
Max Lifting Height – 205mm
Min Lifting Height – 90mm
Steering Wheel Diameter – 180 x 52mm
Hydraulic system – DF
Wheels – Alloy Wheel
Weight – 150kg
Model No. DI-HPT2.5
Load Capacity – 2500Kg
Width – 550mm
Fork Length – 1150mm
Max Lifting Height – 200mm
Min Lifting Height – 80mm
Steering Wheel Diameter – 180 x 50mm
Hydraulic system – DF
Wheels – Nylon
Weight – 75kg
Model No. DI-HPT2.5T
Load Capacity – 2500Kg
Width – 685mm
Fork Length – 1220mm
Max Lifting Height – 200mm
Min Lifting Height – 80mm
Steering Wheel Diameter – 180 x 50mm
Hydraulic system – DF
Wheels – PU
Weight – 76kg
Model No. DI-MS2T
Load Capacity: 2000 Kg
Min fork height: 80 mm
Max fork height: 1600 mm
Overall Height: 1940 mm
Min Lifting Height: 220-580 mm
Fork length: 900 mm
Overall Width: 730 mm
Overall Length: 1350 mm
Weight: 160 Kg
