Semi Electric Stacker 1 Ton Height 2000mm

Semi Electric Stacker Capacity 2 Ton Height 3 Meters

MODEL DI-SE2T3M
LOAD CAPACITY Q(kg) 2000
LOAD CENTER c(mm) 500
WHEEL BASE Y(mm) 1145
WEIGHT (WITH BATTERY) kg 265-350
WHEEL SIZE, FRONT (mm) φ80×70
WHEEL SIZE, REAR (mm) φ180×50
HEIGHT, MAST LOWERED h1(mm) 2088
LIFTING HEIGHT h3(mm) 3000
MAST HEIGHT AT MAX. LIFTING HEIGHT h4(mm) 2088
LOWERED FORK HEIGHT h13(mm) 90
OVERALL LENGTH l1(mm) 1505
OVERALL WIDTH b1(mm) 1080~1420
FORK LENGTH l(mm) 1150
FORK WIDTH b5(mm) 240~660
MAST GROUND CLEARANCE m1(mm) 28
AISLE WIDTH FOR PALLET1000x1200 (1200 CROSSWAYS) Ast(mm) 1705
AISLE WIDTH FOR PALLET 800×1200 (1200 LENGTHWAYS) Ast(mm) 1755
TURNING RADIUS WA(mm) 1210
LIFTING SPEED,LADEN/UNLADEN m/s 150
LOWER SPEED,LADEN/UNLADEN m/s MANUAL
LIFTING MOTOR POWER kW 1.6
BATTERY VOLTAGE/NOMINAL CAPACITY V/Ah 12 – 150

₹165,000.00

In Stock
Share (0)
Total: 0 Total: 0 Total: 0 Total: 0
SKU: semi-electric-stacker-capacity-2-ton-height-3-meters Categories: , ,

Description

MODEL DI-SE2T3M
LOAD CAPACITY Q(kg) 2000
LOAD CENTER c(mm) 500
WHEEL BASE Y(mm) 1145
WEIGHT (WITH BATTERY) kg 265-350
WHEEL SIZE, FRONT (mm) φ80×70
WHEEL SIZE, REAR (mm) φ180×50
HEIGHT, MAST LOWERED h1(mm) 2088
LIFTING HEIGHT h3(mm) 3000
MAST HEIGHT AT MAX. LIFTING HEIGHT h4(mm) 2088
LOWERED FORK HEIGHT h13(mm) 90
OVERALL LENGTH l1(mm) 1505
OVERALL WIDTH b1(mm) 1080~1420
FORK LENGTH l(mm) 1150
FORK WIDTH b5(mm) 240~660
MAST GROUND CLEARANCE m1(mm) 28
AISLE WIDTH FOR PALLET1000x1200 (1200 CROSSWAYS) Ast(mm) 1705
AISLE WIDTH FOR PALLET 800×1200 (1200 LENGTHWAYS) Ast(mm) 1755
TURNING RADIUS WA(mm) 1210
LIFTING SPEED,LADEN/UNLADEN m/s 150
LOWER SPEED,LADEN/UNLADEN m/s MANUAL
LIFTING MOTOR POWER kW 1.6
BATTERY VOLTAGE/NOMINAL CAPACITY V/Ah 12 – 150

Reviews

There are no reviews yet.

Be the first to review “Semi Electric Stacker Capacity 2 Ton Height 3 Meters”

Your email address will not be published. Required fields are marked *

You may also like…

Related products

  • Sale!
    Pallet and Platform Truck

    Hand Pallet Truck 2-Ton Pu Wheels

    Model No. DI-HPT2PU
    Load Capacity – 2000Kg
    Width – 550mm
    Fork Length – 1150mm
    Max Lifting Height – 200mm
    Min Lifting Height – 75mm
    Steering Wheel Diameter – 180 x 50mm
    Hydraulic system – DF
    Wheels – PU
    Weight – 95kg

    (0 reviews)
    ₹21,000.00 Add to cart
  • Reel Hand Pallet Truck 1.5 Ton Fork Width1200mm Nylon wheel
    Pallet and Platform Truck

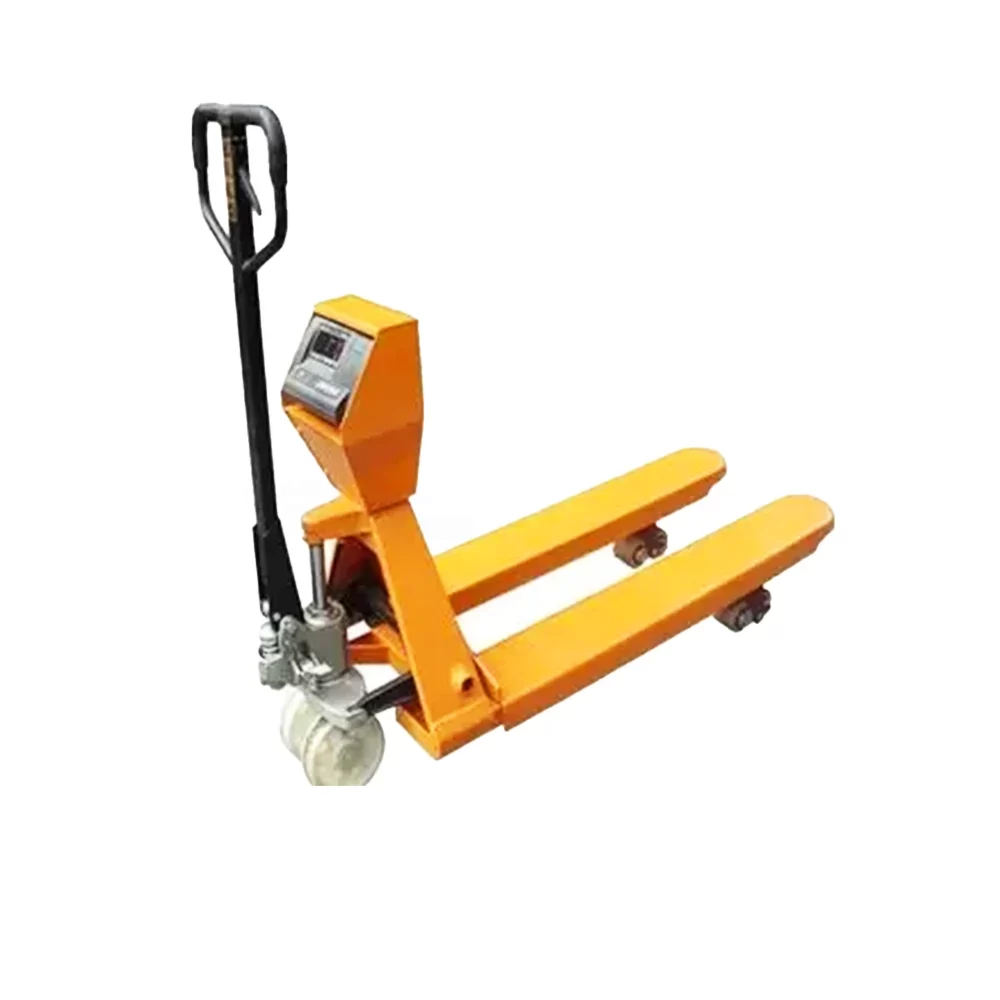

    Weighing Scale Pallet Truck 2.5 Ton 550mm Nylon
